K130 Braunschweig Sınıfı Korvetler (K130 Braunschweig Class Corvettes)

K130 Braunschweig Sınıfı Korvetler (K130 Braunschweig Class Corvettes)

F260    Braunschweig
F261    Magdeburg
F262    Erfurt
F263    Oldenburg
F264    Ludwigshafen am Rhein


Operators:     German Navy
Built:    2004–2007
In commission:    2008–
Planned:    5
Completed:    5
Active:    2
General characteristics
Type:    Corvette
Displacement:    1,840 tonnes (1,810 long tons)
Length:    89.12 m (292 ft 5 in)
Beam:    13.28 m (43 ft 7 in)
Draft:    3.4 m (11 ft 2 in)
Propulsion:    MTU 20V 1163 TB 93 diesel engines producing 14.8MW, driving two controllable-pitch propellers.
Speed:    26 knots (48 km/h; 30 mph)
Range:    4,000 nmi (7,400 km) at 15 kn (28 km/h; 17 mph)[1]
Endurance:    7 days; 21 days with tender
Complement:    65 : 1 commander, 10 officers, 16 chief petty officers, 38 enlisted

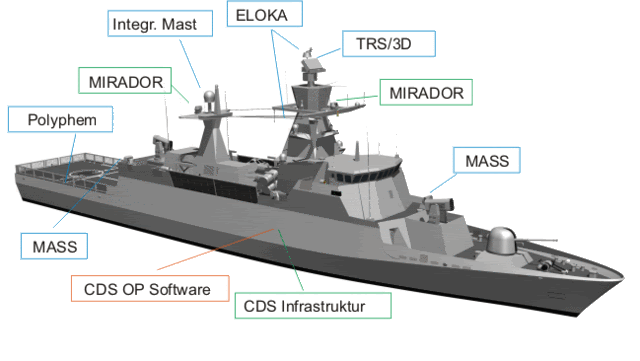

Sensors and
processing systems:
• TRS-3D multifunction radar
• 2 navigation radars
• MSSR 2000 i IFF system
• MIRADOR electro-optical sensors
• UL 5000 K ESM suite
• Link 11 and Link 16 communications
Electronic warfare
and decoys:
• 2 × TKWA/MASS (Multi Ammunition Softkill System) decoy launcher
• UL 5000 K ECM suite
Armament:

    Guns;
        1 x Otobreda 76 mm gun
        2 x MLG 27 mm autocannons
    Anti-ship;
        4 x RBS-15 Mk.3 Anti-ship missiles
    CIWS;
        2 x 21-cell RAM CIWS missile launchers
    Mine laying capability;

Aircraft carried:    Helicopter pad and hangar for two Camcopter S-100

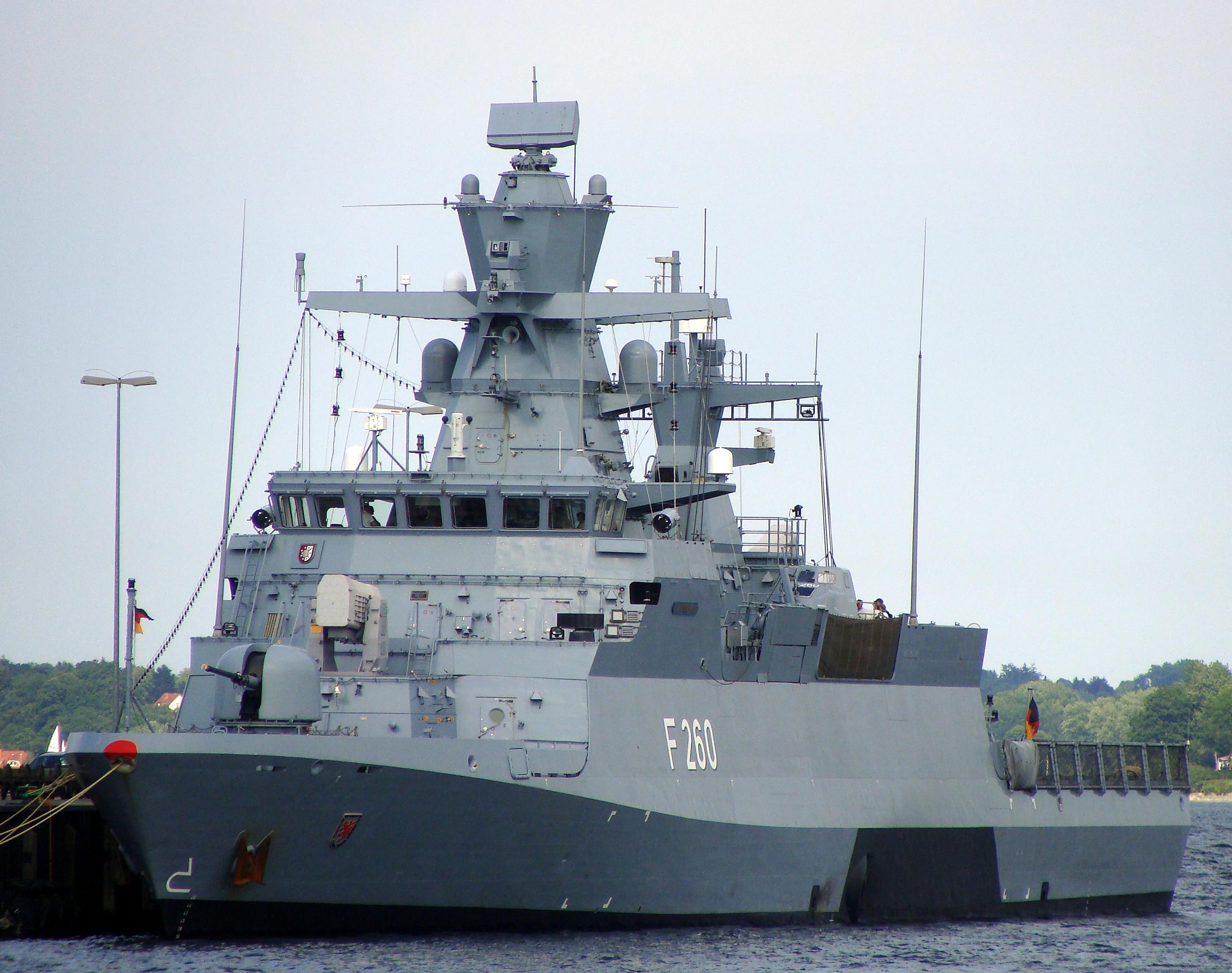

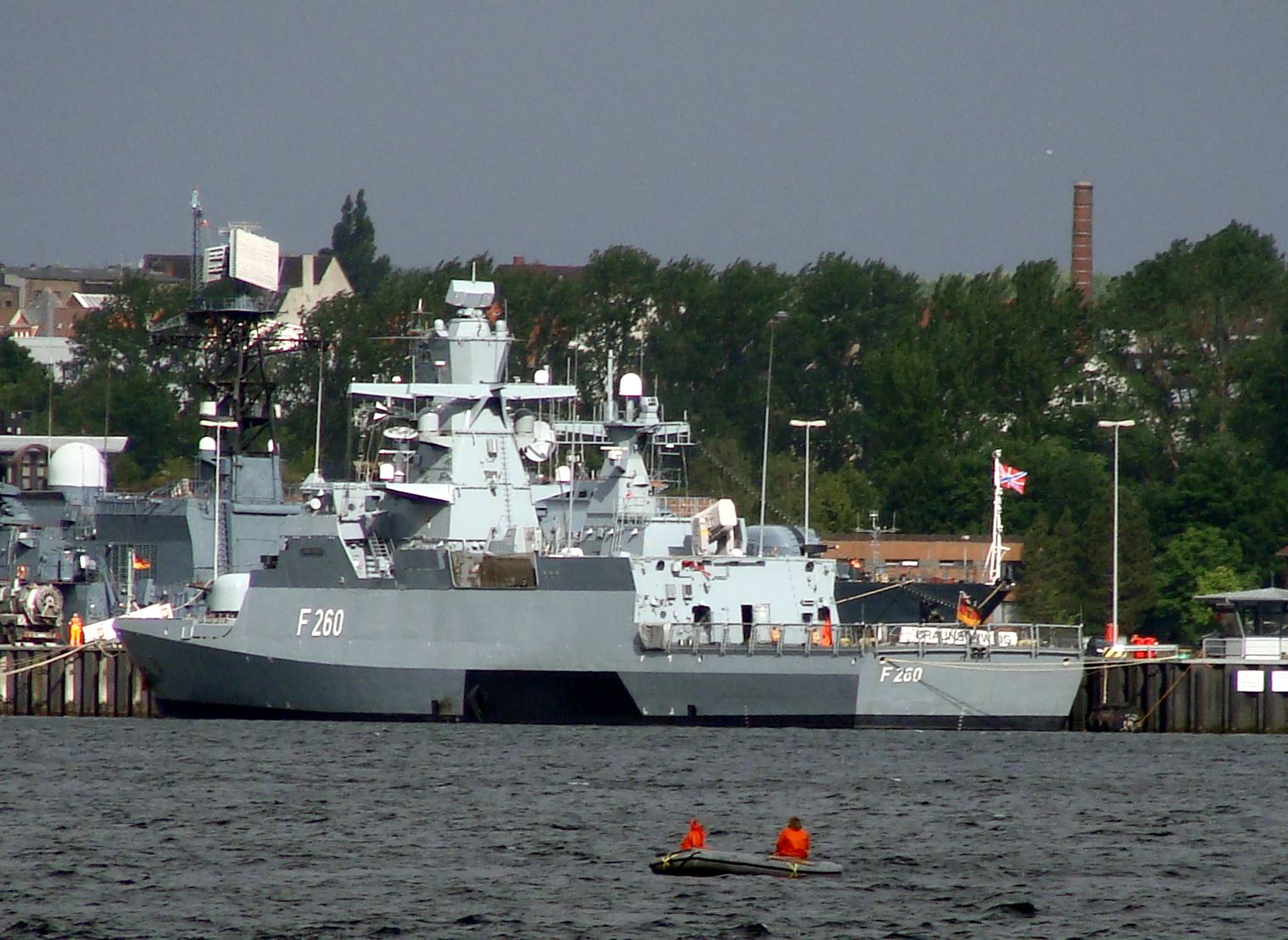

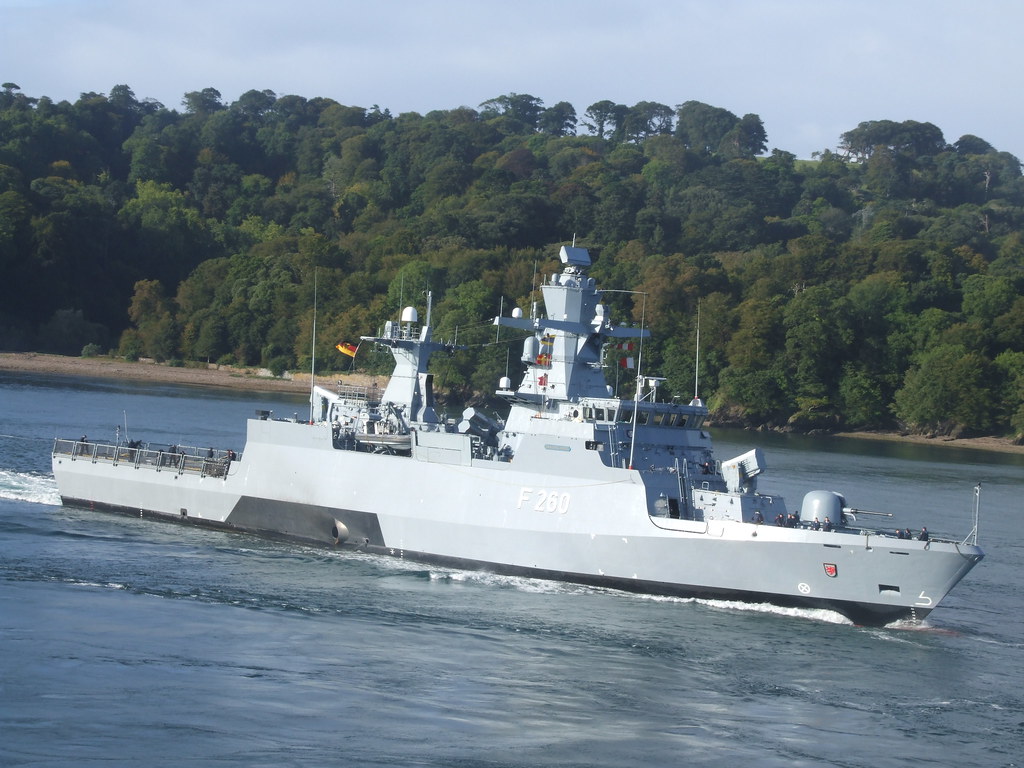

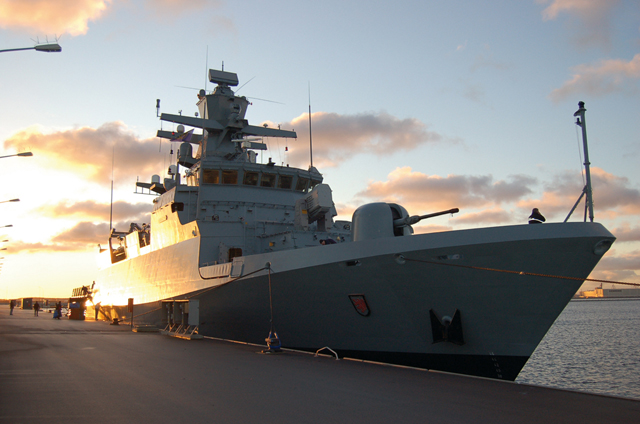

F260    Braunschweig

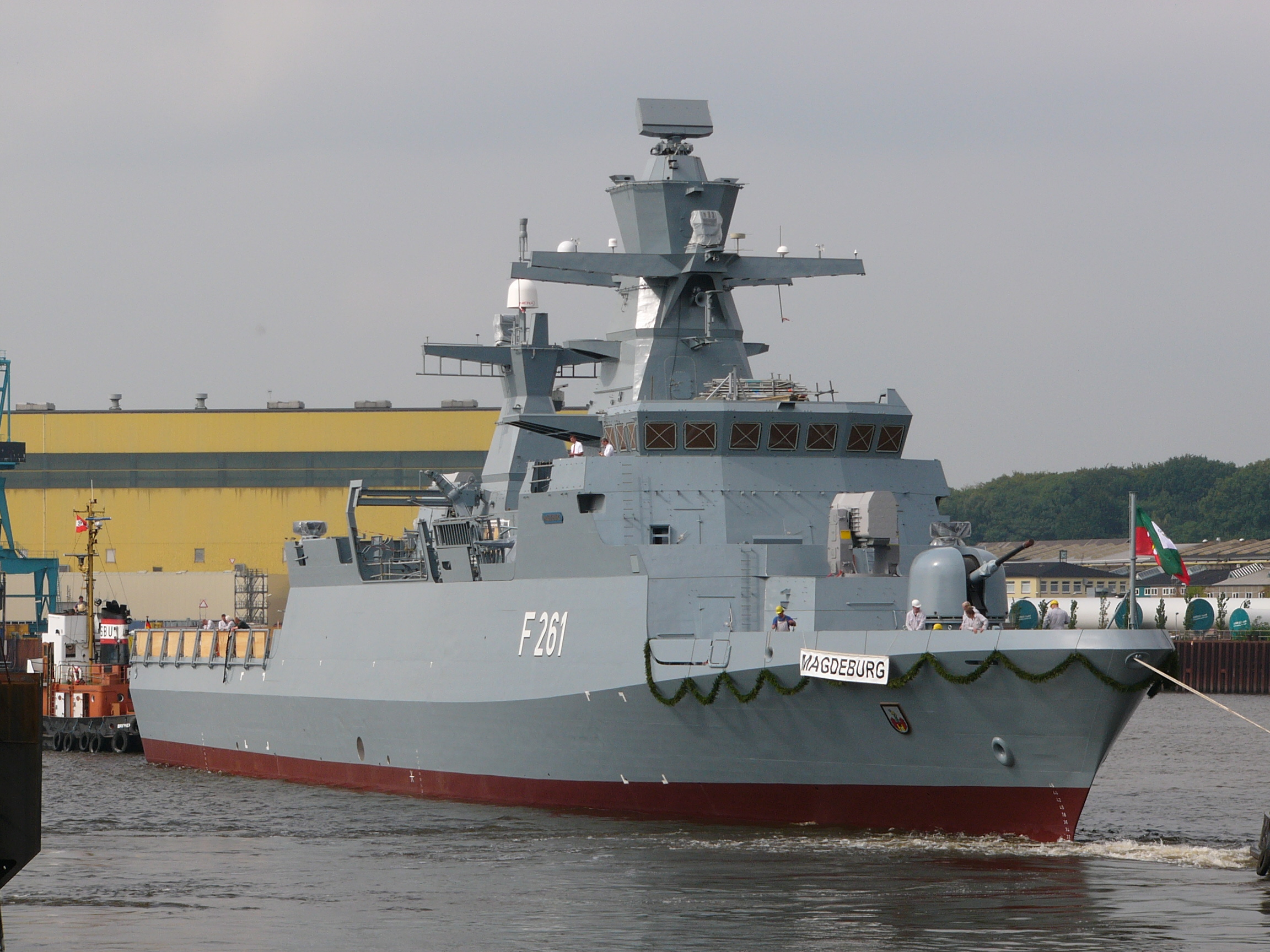

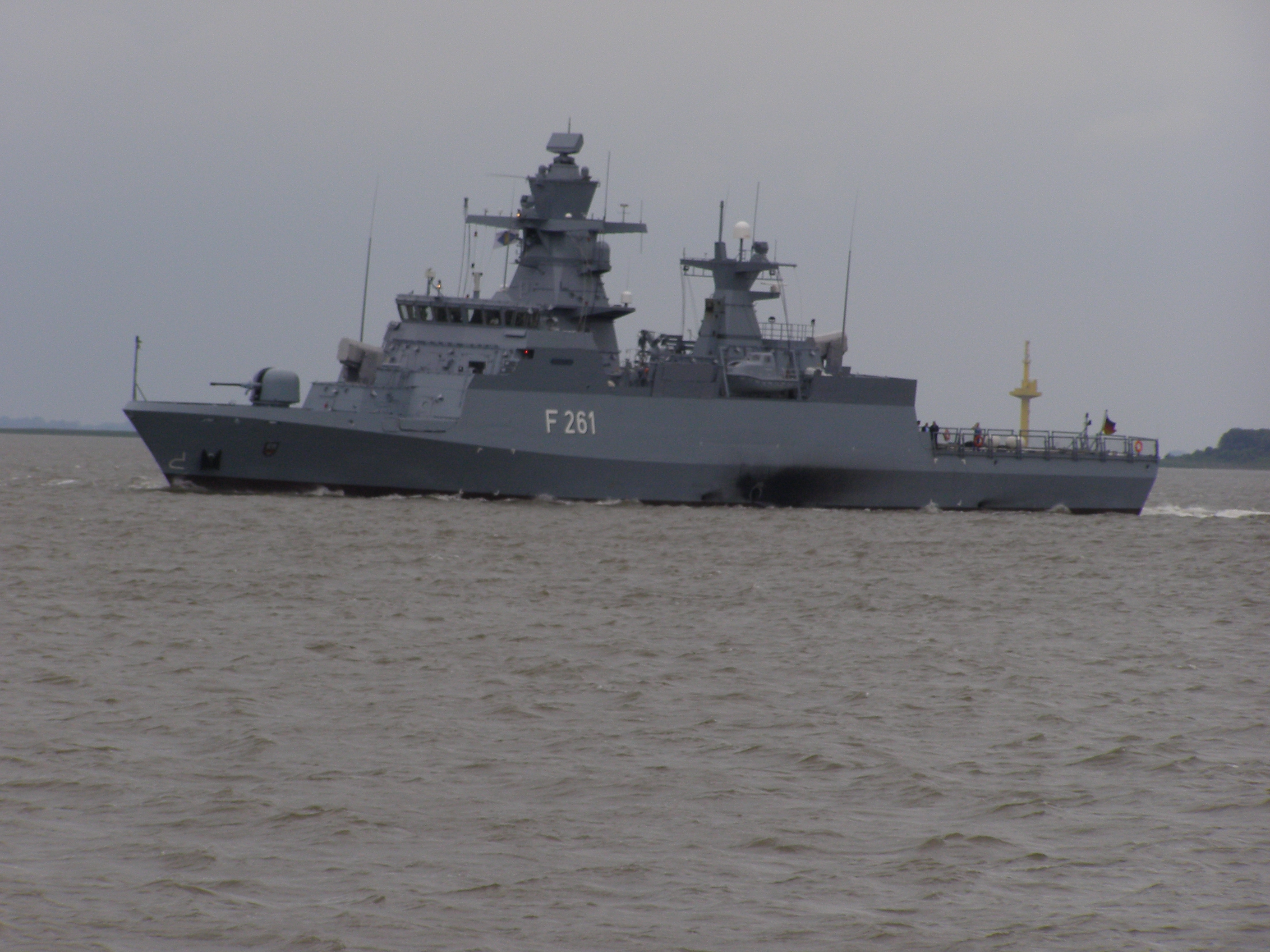

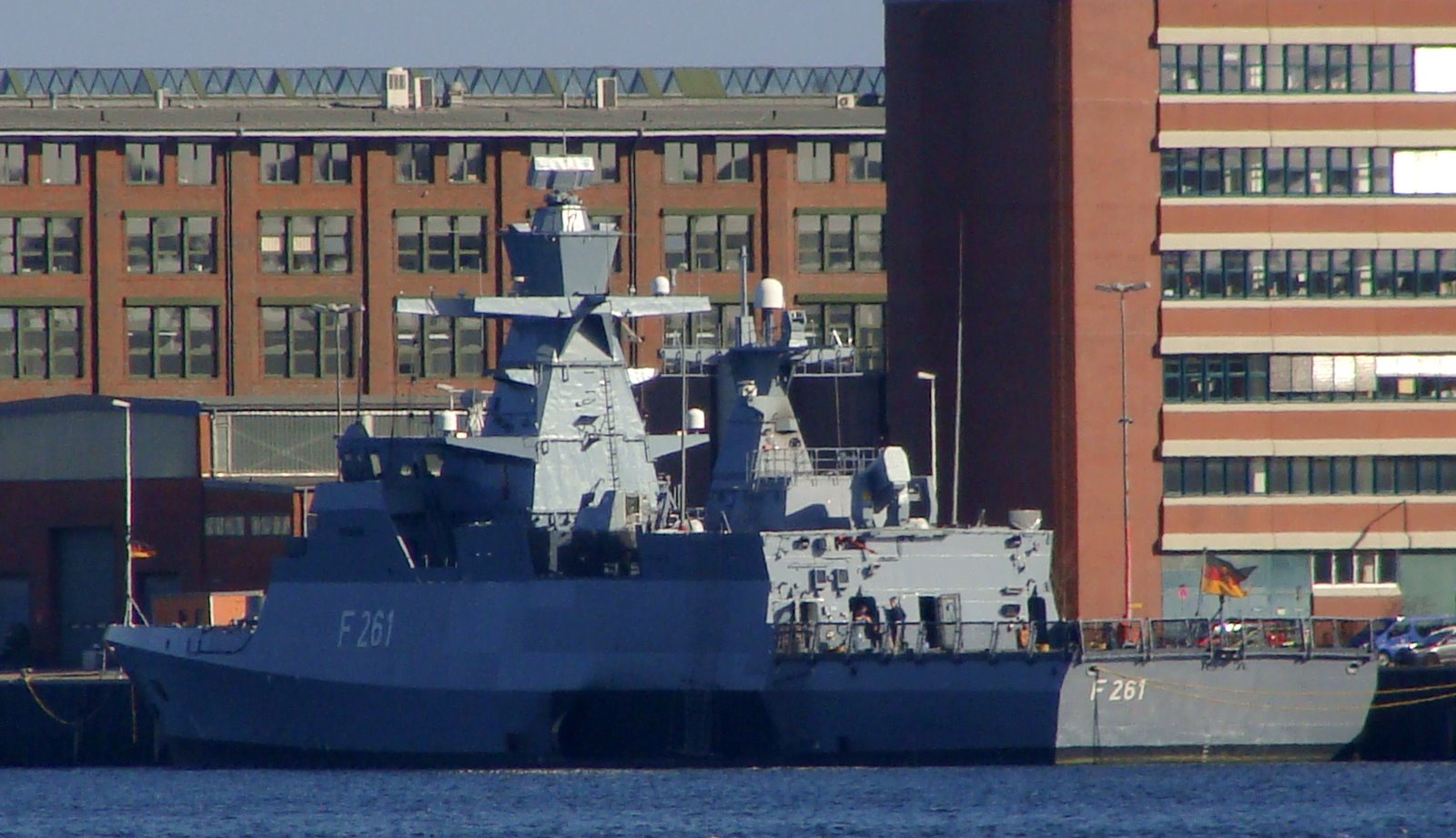

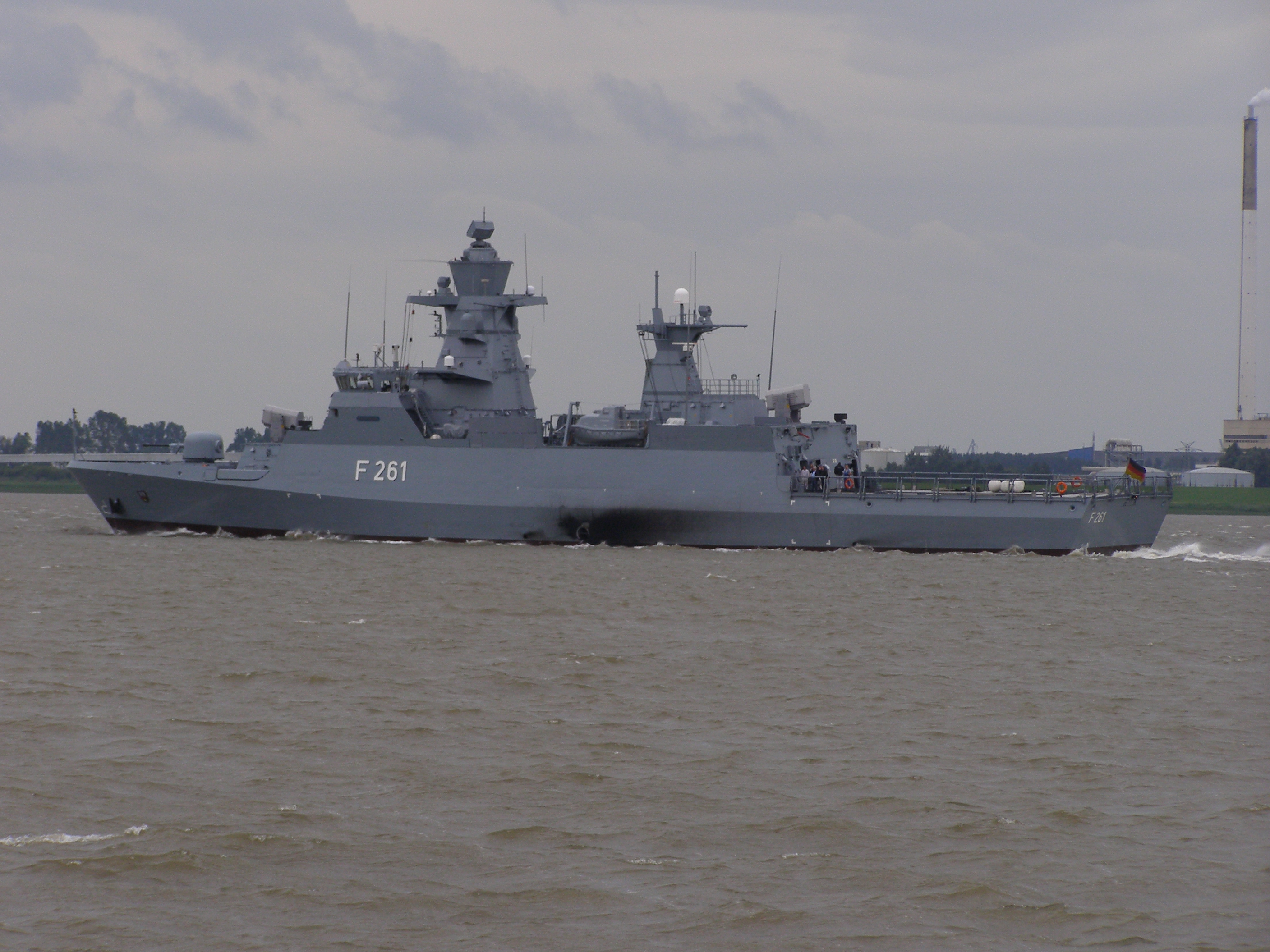

F 261 Magdeburg

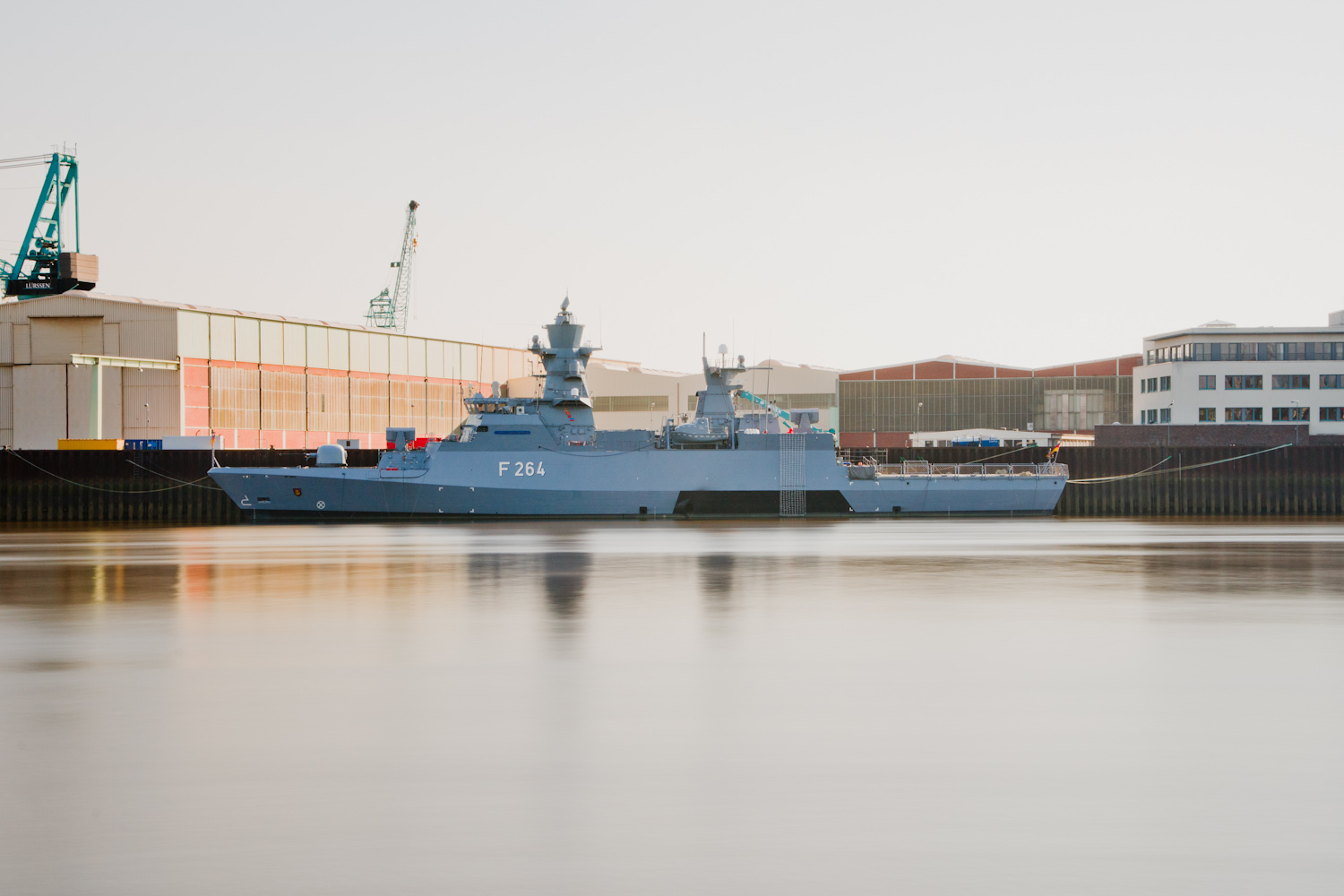

F264    Ludwigshafen am Rhein

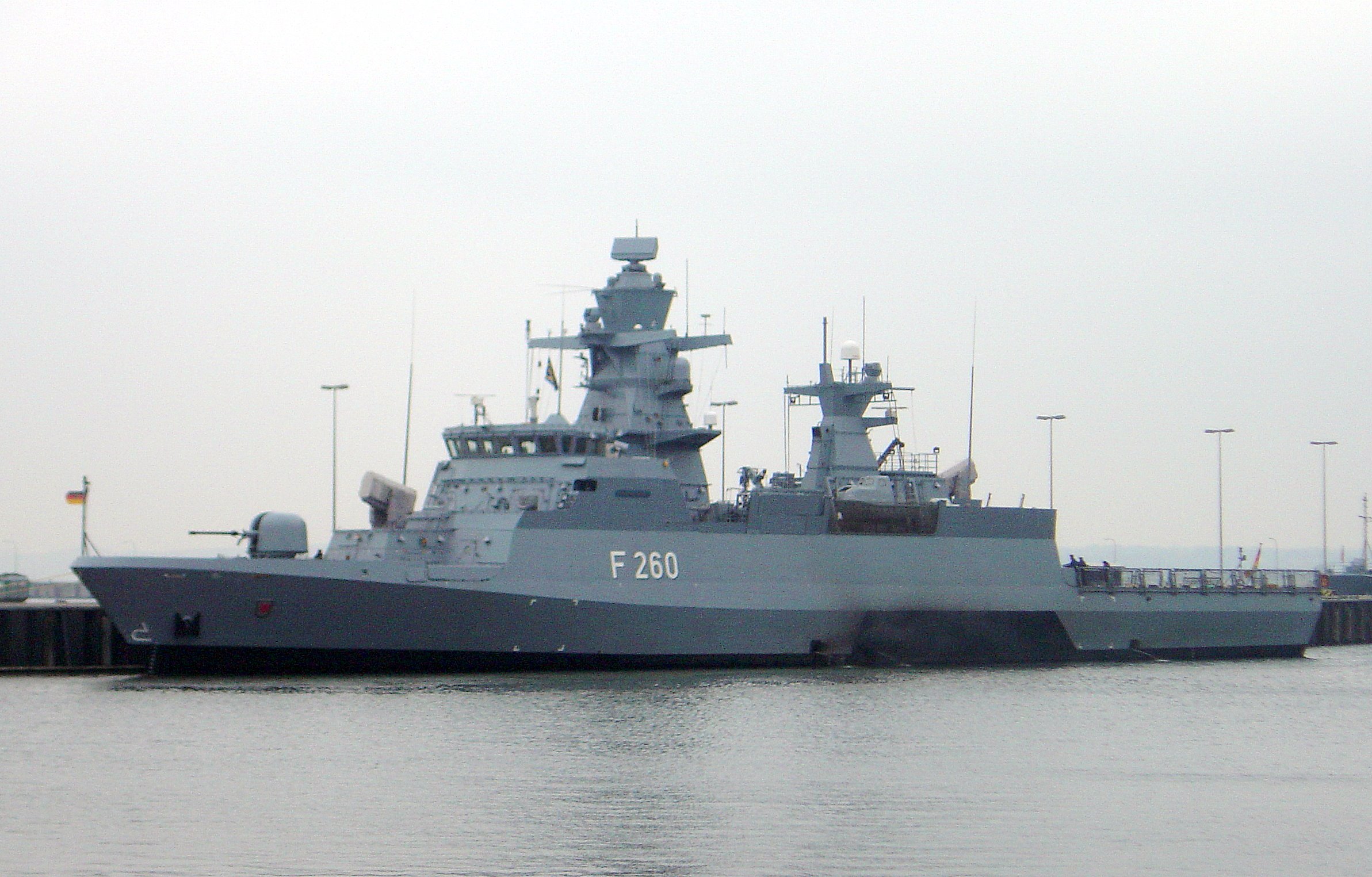

Bilmem dikkatinizi çekti mi, bu gemide baca falan yok. Duman yan kısımdaki siyah bölgedeki delikten, su yüzeyiyle aynı seviyeden dışarı atılıyor. Bu şekilde geminin termal izi azaltılmış.
